Block Machines
High-performance Concrete Block Making Machines engineered for efficiency, precision, and durability — empowering construction businesses worldwide.

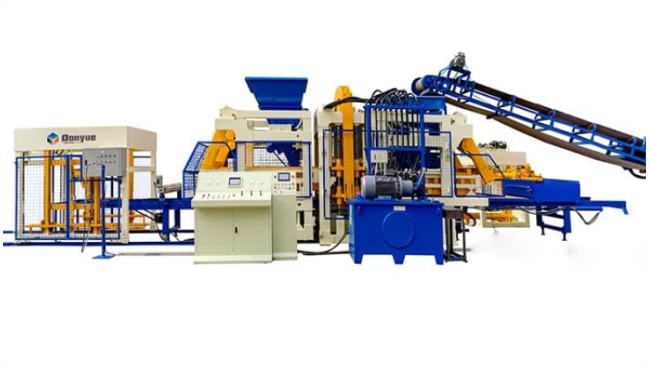

Fully Automatic Block Machine
QT18-15- Fully Automatic Block production with Curing System
Main technical parameter:
1-Dimensions of hot machine = 14,000* 2350 *3800 mm
2-Weight of host machine = 20T
3-Host machine power = 116 KM
4-Vibration force = 200-230 KN
5- Pallets size = 1400*1350*40 mm
6- Moulding cycle = 15c
Daily production depends on type of block

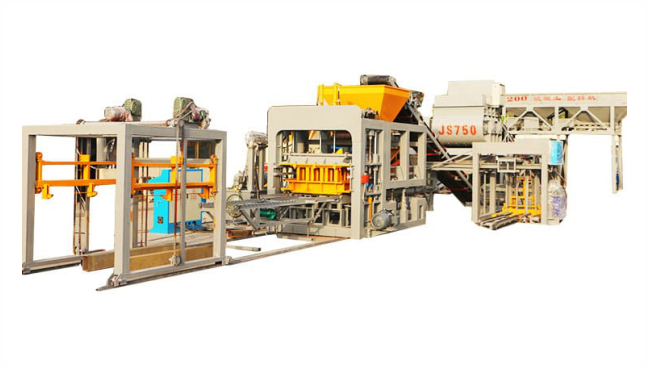

QT15-15- Fully Automatic Block production with Curing System
Main technical parameter:
1-Dimensions of hot machine = 12, 500* 2500 *3800 mm
2-Weight of host machine = 19T
3-Host machine power = 75 KM
4-Vibration force = 180 KN
5- Pallets size = 1400*1100*35 mm
6- Moulding cycle = 15c
Daily production depends on the type of block

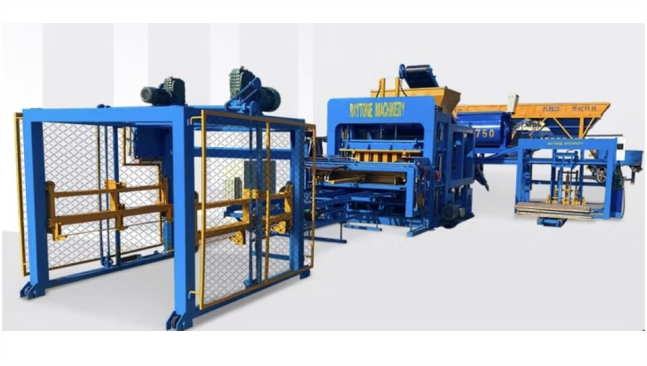

QT12-15- Automatic Hydraulic Block Macking Machine
Main technical parameter:
1-Dimensions of hot machine = 3800* 2500 *3550 mm
2-Weight of host machine = 13.5T
3-Host machine power = 56.2 KM
4-Vibration force = 100-130 KN
5- Pallets size = 1400*900*30 mm
6- Moulding cycle = 15c
Daily production depends on the type of block

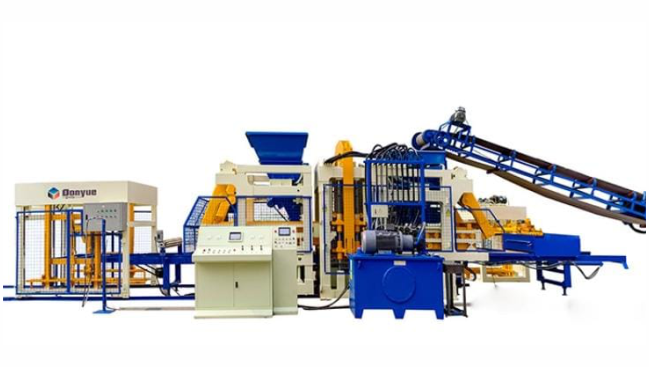

QT10-15- Automatic Hydraulic Block Macking Machine
Main technical parameter:
1-Dimensions of hot machine = 3800* 2300 *3550 mm
2-Weight of host machine = 11. 5T
3-Host machine power = 51.2 KM
4-Vibration force = 90-100 KN
5- Pallets size = 1300*900*30 mm
6- Moulding cycle = 15c
Daily production depends on the type of block

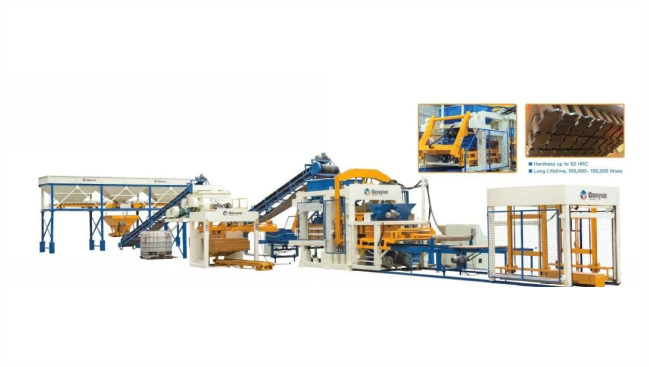

QT8-15- Automatic Hydraulic Block Macking Machine
Main technical parameter:
1-Dimensions of hot machine = 3800* 2300 *2950 mm
2-Weight of host machine = 10.5T
3-Host machine power = 45 KM
4-Vibration force = 70-100 KN
5- Pallets size = 1050*900*30 mm
6- Moulding cycle = 15c
Daily production depends on the type of block

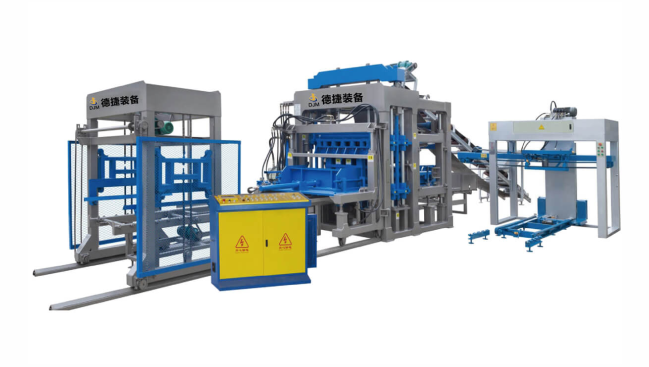

QT6-15- Automatic Hydraulic Block Macking Machine
Main technical parameter:
1-Dimensions of hot machine = 3200* 2300 *2750 mm
2-Weight of host machine = 8.5T
3-Host machine power = 45 KM
4-Vibration force = 60-80 KN
5- Pallets size = 1150*720*25 mm
6- Moulding cycle = 15c
Daily production depends on the type of block
Semi-Automatic Block Machine

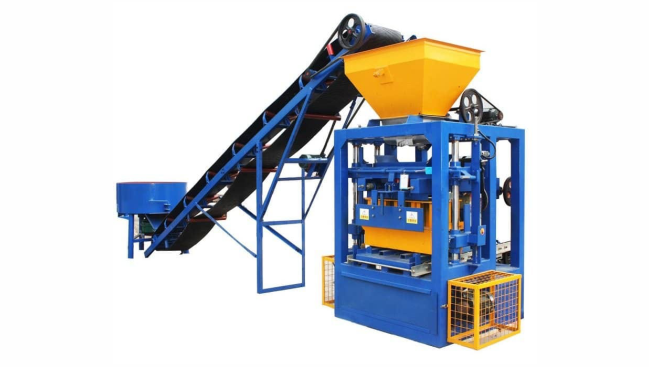

QT4-24- Semi-Automatic Block Macking Machine
Main technical parameter:
1-Dimensions of hot machine = 1850* 1880 *2240 mm
2-Weight of host machine = 1.56T
3-Host machine power = 13.45 KM
4-Vibration force = 35.5 KN
5- Pallets size = 850*550*20 mm
6- Moulding cycle = 24s
Daily production depends on the type of block
Manual Block Machine

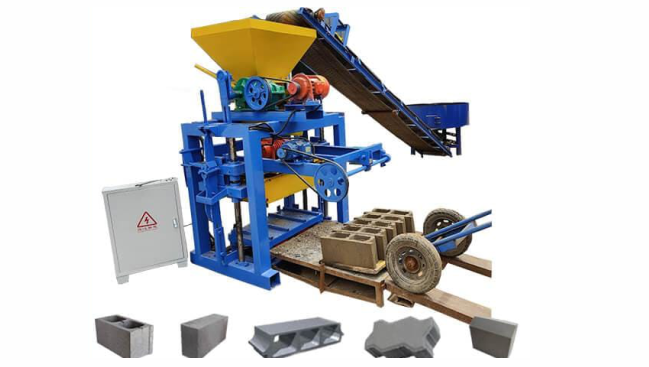

QT40-1 Manual Block Macking Machine
Main technical parameter:
1-Dimensions of hot machine = 1350* 1460 *1800 mm
2-Weight of host machine = 1.1T
3-Host machine power = 8.8 KM
4-Vibration force = 30 KN
5- Pallets size = 850*450*20 mm
6- Moulding cycle = 40s
Daily production depends on the type of block
